iXtreme Burner Max刷写建兴X24B系列光驱教程&Imageburn刻录教程-电玩之家

iXtreme Burner Max刷写建兴X24B系列光驱教程&Imageburn刻录教程: 阅读次数：更新时间：2013/10/25

先下载lx_bm_1.0文件：点击下载

解压后即可得到固件+imageburn+EEPROM+Flash_Utility

首先你需要以下中的 DVD 刻录机:
LiteOn iHas124-XX B
LiteOn iHas224-XX B
LiteOn iHas324-XX B
LiteOn iHas424-XX B
LiteOn iHas524-XX B
LiteOn iHas624-XX B
(The XX varies – the important part is the firmware version B: denotes chipset)
(XX无所谓,B才是最重要的,他决定了光驱主控)

THIS TUTORIAL SHOWS THE PROCESS FOR 324! ENSURE YOU USE CORRECT
UPGRADE.EXE AND CORRECT FW FOR YOUR DRIVE!
本教程将以324为例子,请确定你使用了正确的upgrade.exe以及你光驱正确的固件

Then of course you need the Max iXtreme custom Burner firmware for your relevant model.
You will also require the drive upgrade.exe, again ensure correct one for your drive!
Plus 2 other utility programs from
当然,你需要c4的刻录机固件,你也需要你自己刻录机的upgrade.exe,请再次确认你自己的光驱型号!
2个必要软件下载地址: 点击下载

EEPROM Utility (v6.2.0) http://codeguys.rpc1.org/utilities/EEPROM_Utility-6.2.0.rar
Flash Utility (v6.0.1) http://codeguys.rpc1.org/utilities/Flash_Utility-6.0.1.rar

Firstly – connect your drive (normal onboard SATA should be more than adequate) and you can
also use X360USB Pro if you wish. (I’m not going explain connecting a SATA cable)
第一步:连接你的光驱(主板上的SATA接口将比那些扩展接口更好),当然你也可以使用X360USB(国内无售)(如何连接光驱将不被阐述)
Ensure your drive shows in device manager and is listed in windows.
确保在windows里面能看到你的光驱(废话)

Upgrade Your Drive
1.升级固件

Now run the upgrade.exe relevant to your drive.
运行你光驱的upgrade.exe

(Ensure it is for YOUR iHas drive before you continue)
确保是你的型号哦!

Click Yes Button
Once complete it will ask you to reboot the PC
(do so before you continue!)
点击yes按钮
当你完成的时候,他会要你重启.
(如果你想继续,那你必须重启)

BackUp your Current Firmware and EEPROM
2.备份现有光驱固件 & EEPROM
For safety – you should backup your current drive firmware and EEPROM.
Now open the EEPROM Utility – Ensure the correct Drive (iHas)
安全起见 - 你应当备份现有光驱的固件和EEPROM
现在打开EEPROM软件 - 确保光驱型号正确(iHas)

press the Backup Eeprom button.
按下Backup Eeprom按钮

Click Save. Once finished click Exit
点击Save. 完成后点击 Exit

Open the Flash Utility
打开 Flash Utility.exe

Ensure Correct Drive (iHas) is showing
确保显示的是正确的光驱型号

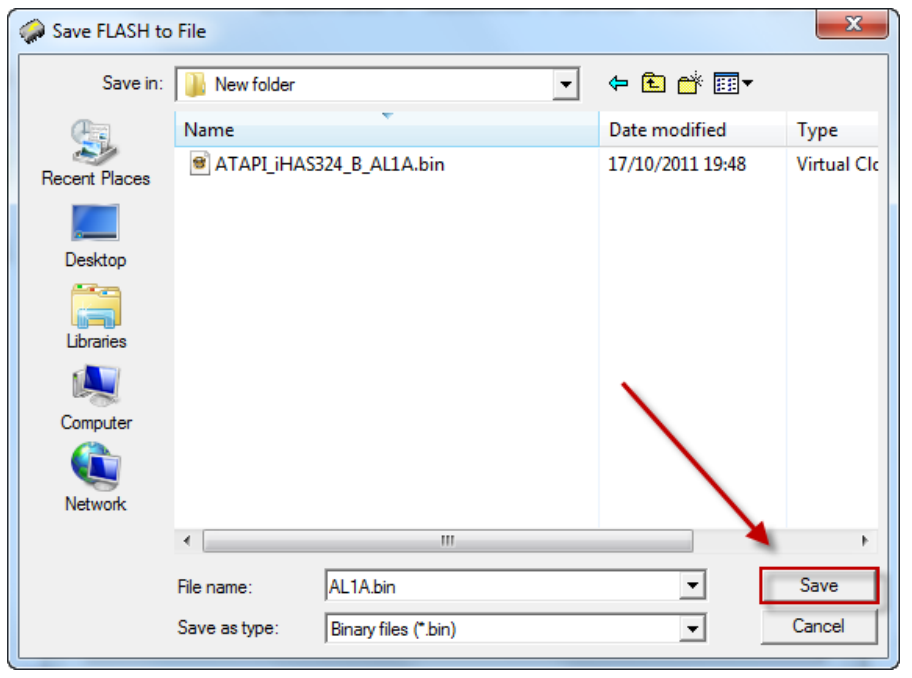

Click the Read Flash Button (should already have automatically selected the 2MB Option)
点击Read Flash 按钮(应该已经自动选择了2MB选项)

Click Save
点击 Save 按钮

Writing the Max iXtreme Firmware!
3.开始写 Max iXtreme 固件!
With the Flash Utility still open (ensure iHas selected)
仍然开着Flash Utility(确保选中iHas)

Click Write Flash Button
点击 Write Flash 按钮

Click Yes Button!
点击 Yes 按钮!

Navigate and select the correct Firmware for your drive model. (Very important)
浏览并选中符合你光驱的固件(非常重要)

Click Open Button
点击 Open 按钮

If you are 100% sure you have chosen correct file
Click Yes Button
如果你完全确信你选择正确了之后.
点击 Yes 按钮

Click Exit!
点击 Exit!

YOU ARE DONE!
恭喜你,你完成了刷写刻录机!

Imageburn刻录教程
Remember the Max iXtreme Burner will only successfully write at a Maximum speed of 4x
on MKM003 (with OPC) and 2.4x on MKM001 (without OPC) DVD+R DL
(Imgburn is the suggested burning software for writing)
Ensure you select perform OPC before write in the settings page as shown below if you intend
to use 4x.
请记住Max iXtreme Burner 只会在最高速4X使用MKM003(打开OPC) 和 2.4X使用MKM001(关闭OPC)DVD+R DL光盘的情况下刻录成功.(推荐使用Imageburn,CloneCD没有OPC选项,能否使用未知,自行承担风险)
如果你有威宝MKM003光盘,并且想用4X刻录,请按照图示打开OPC

Before Writing Ensure you have Verify ticked!

开始刻录之前,确保验证选项选中

Your burn maybe successful but you need to verify it to ensure it is 100%
也许你成功刻录了,但是你必须启用验证来确保100%刻录了
